Ad Server Integration for Advertisement (AVOD)



Introduction

Enabling Advertisement

Setting Up Your Ad Integration with SPOTX

Setting Up Your Ad Integration with DoubleClick Ad Exchange

Setting Up Your Ad Integration with Muvi Ads

Managing Ads for Content

Sending Sample Ad URLto SPOTX

Managing Ad Tags

Ads Supported in Player

Ads Supported in Mobile Browsers & TV Apps



Introduction

At Muvi, we integrate with any Ad server which is VPAID compliant in accordance with IAB guidelines. We have out of the box integration with SPOTX, Muvi Ads, and DoubleClick Ad Exchange. You can create multiple Ad Tags (For Muvi Ads, SPOTX, and DoubleClick) and link them to multiple content.



Enabling Advertisement

Before setting up your Ad Integration, first, you need to enable this feature in the CMS.

  • To enable Advertisement, navigate to “Monetization-->Settings” in the CMS.
  • Under the “Monetization Model”, select the checkbox for “Advertisement”.
  • Click on “Update”.
  • Advertisement will be enabled for your store. Once the Advertisement is enabled, it will be displayed under the Monetization menu. ((Monetization -->Advertisement)

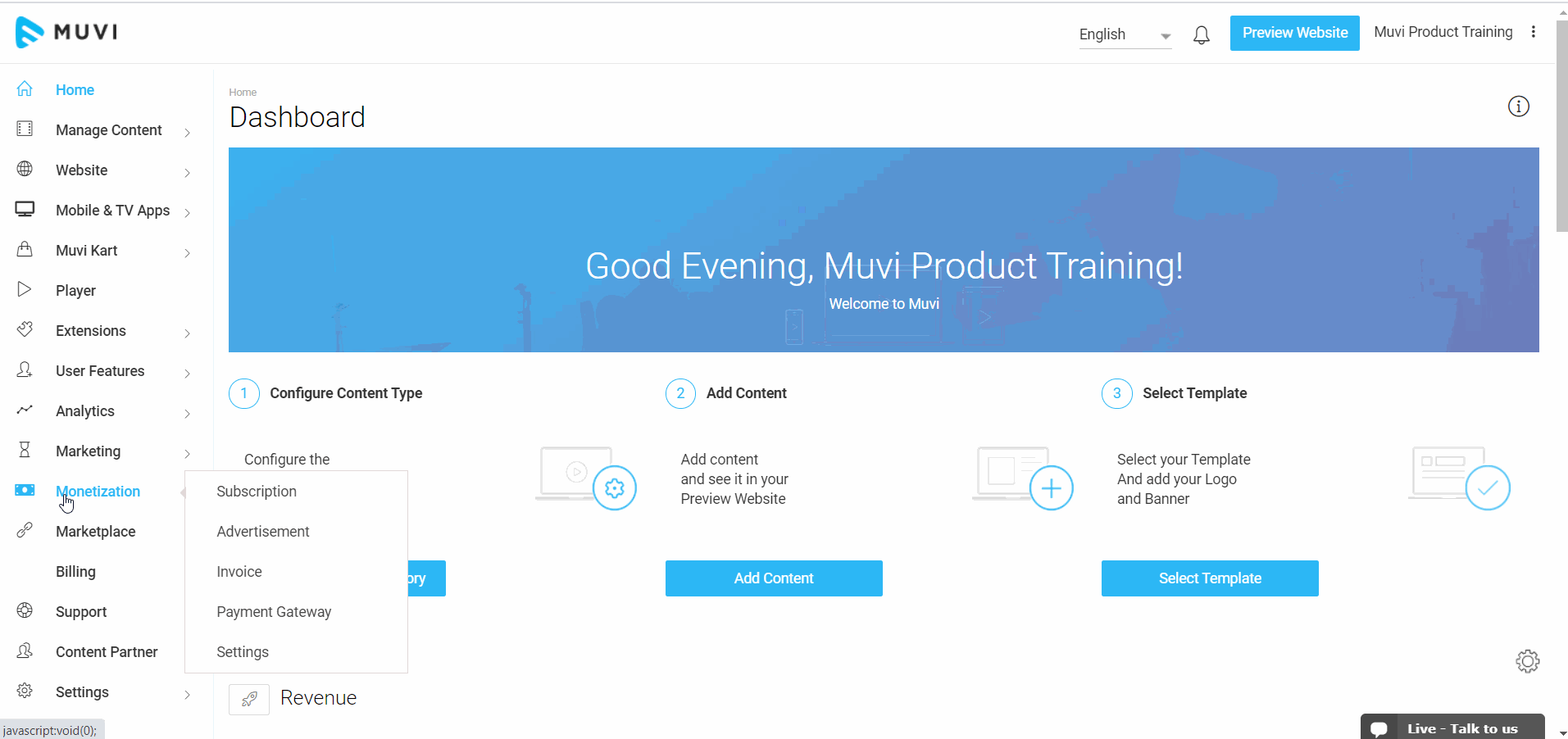

Setting Up Your Ad Integration with SPOTX

  • First, you need to set up your account with SPOTX
  • Once your publisher account is setup, please go to “Monetization --> “Advertisement” in the CMS (See Below Screenshot).
  • Click on “SPOTX“.
  • Click on the "Add New Ad Tag" button.
  • Type the Ad Tag Name and Ad Tag Value in the corresponding field.
  • Click on "Save".
Note: You can add multiple Ad Tags by repeating the above procedure. By creating multiple Ad Tags you can add different ads to different content in your store.

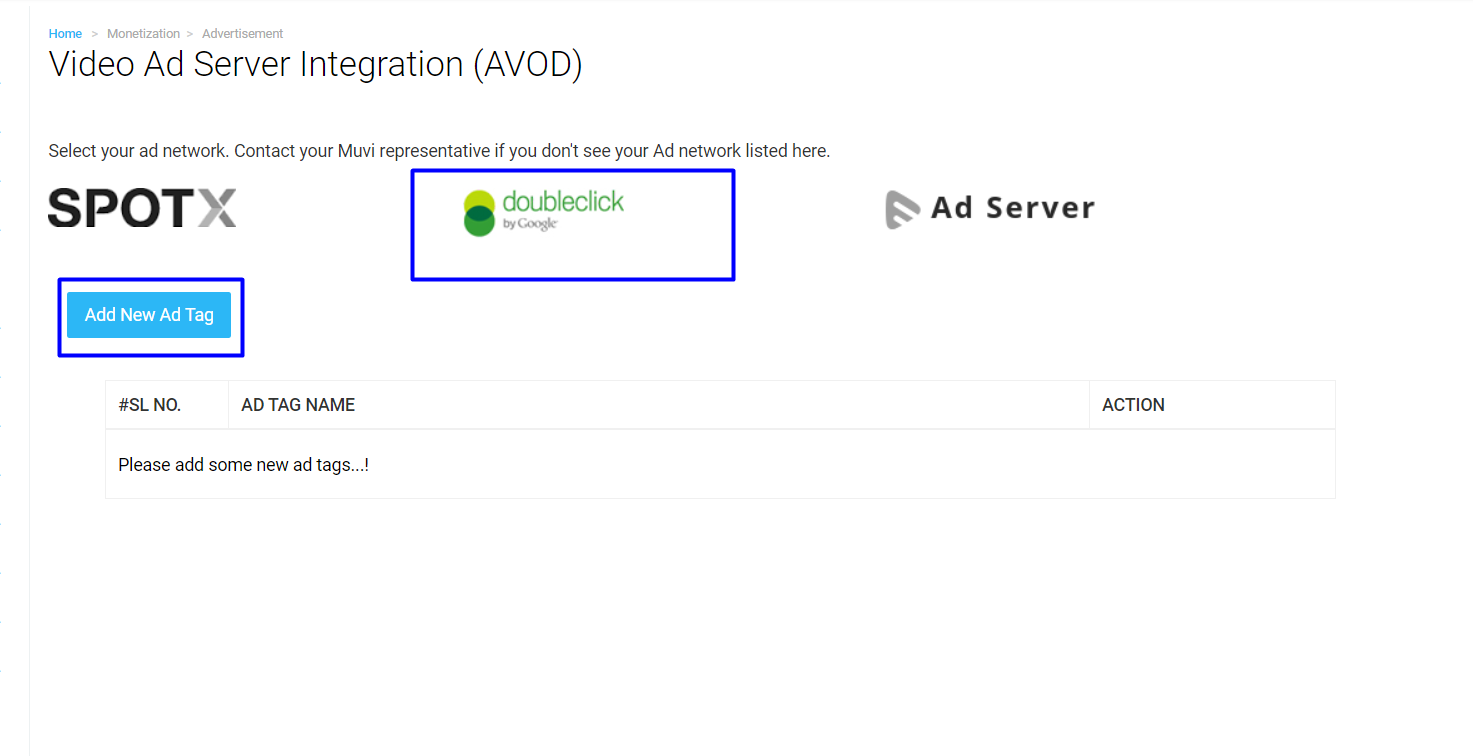

Setting Up Your Ad Integration with DoubleClick Ad Exchange

  • First, you need to sign up with DoubleClick Ad Exchange
  • Once you signed up with DoubleClick Ad Exchange, you need to generate your Ad Tag (Please Click Here to know how to generate video Ad Tags)
  • Navigate to “Monetization --> “Advertisement” in the CMS (See Below Screenshot).
  • Click on “DoubleClick Ad Exchange".
  • Click on the "Add New Ad Tag" button  (Please follow the same procedure as mentioned above for SPOTX)
  • Type the Ad Tag Name and Ad Tag Value in the corresponding field. (You can use the sample ad tags to test ads on the content)
  • Click on "Save".
Note: You can add multiple Ad Tags by repeating the above procedure. By creating multiple Ad Tags you can add different ads to different content in your store.

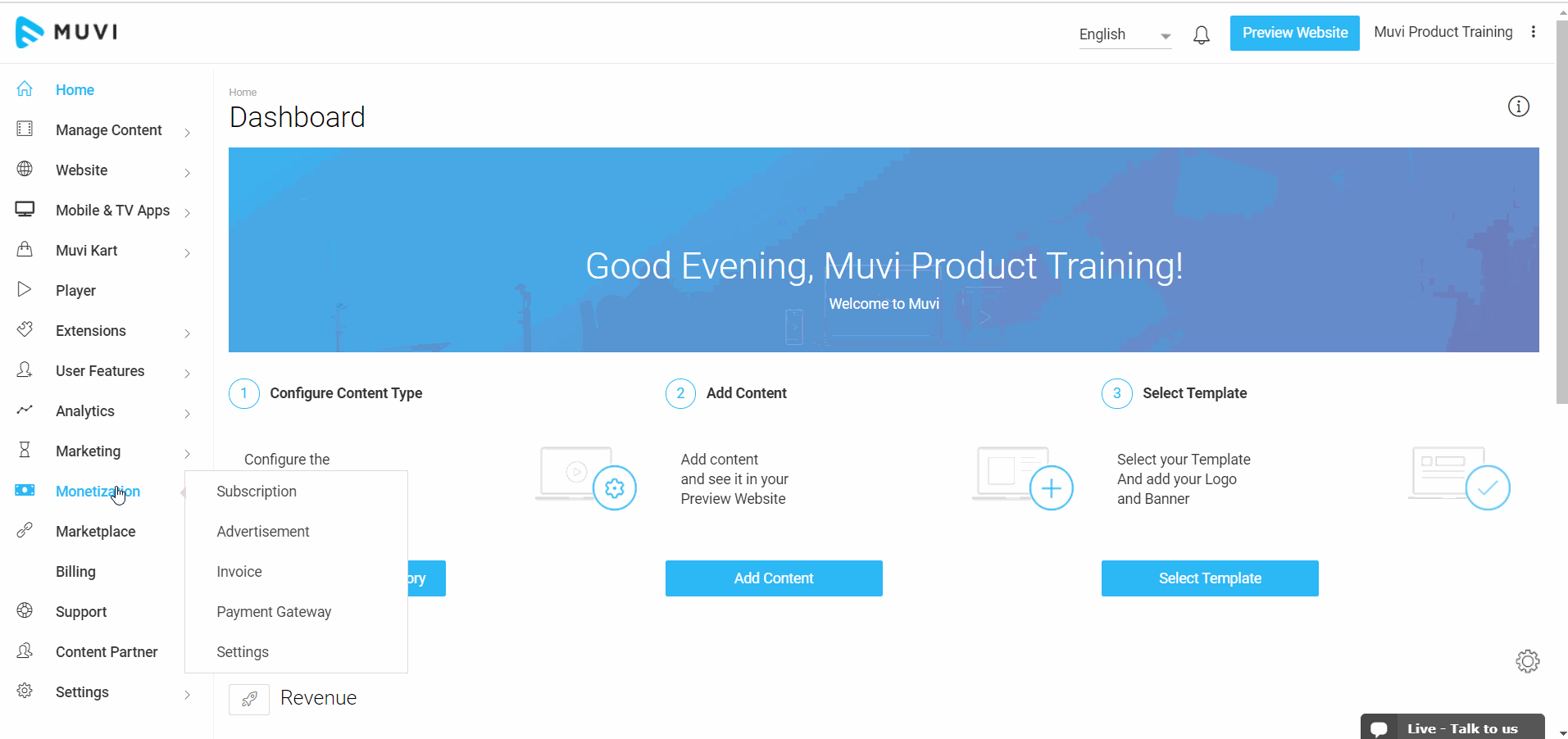

Setting Up Your Ad Integration with Muvi Ads

  • First, you need to sign up with Muvi Ads.
  • Once you signed up with Muvi Ads, you need to generate your Ad Tag (Please Click Here to know how to generate video Ad Tags)
  • Navigate to “Monetization --> “Advertisement” in the CMS.
  • Click on “Muvi".
  • Click on the "Add New Ad Tag" button  (Please follow the same procedure as mentioned above for SPOTX and DoubleClick)
  • Type the *Ad Tag Name and Ad Tag Value (you will get Ad Tag Value in the Muvi Ads when you click on "Get API").
Note:

  • You can add multiple Ad Tags by repeating the above procedure. By creating multiple Ad Tags you can add different ads to different content in your store.
  • *While typing the Ad Tag name, please make sure that there shouldn't be any gap between the words or letters(for example if the Ad Tag name is "Test Ad" then you need to type it as "TestAd")





Managing Ads for Content

  • Navigate to “Manage Content“–-> “Content Library“  in the CMS
  • To set up an ad for content, on the right-hand side of the content, click on “Manage Ads
  • Select the check box “Enable Ads on this video”.
  • Choose either *Pre-roll”, *Mid-roll” or *"Post-roll" option or you can also choose all the 3 options.
  • Select the #Ad Tag for content from the drop-down.
  • Click on “Save”.
Note:

  • Currently, we are supporting Ads for Pre-roll, Mid-roll, and Post-roll for SpotX and Pre-Roll, Mid-Roll for DoubleClick on web browsers only.
  • *If you select "Pre-roll" then the ad will be played before the content starts playing. If you select "Mid-roll" you can select the time after how many seconds or minutes the ad will be played in the content. If you select "Post-roll", the ad will be played at the end of the content.
  • For DoubleClick,  there is no option available to enable the “Pre-roll”, “Mid-roll” in the Muvi CMS. You need to enable this in the DoubleClick ad server.
  • You can integrate ads in all types of content including, single part, multi-part, paid (SVOD, PPV), and free content. Currently, we do not support ads for live streaming content and third-party content(YouTube, Vimeo, Dailymotion, etc.).
  • #At present, you can only configure only single Ad for each content. That means you can configure an Ad in a specific content in Pre-Roll, Mid-Roll, and Post-Roll that will play in the content at the beginning, middle (the time you set for Mid-Roll), and end of the content. However, you cannot add 3 different Ads in Pre-Roll, Mid-Roll, and Post-Roll for specific content.







  • Link the SPOTX Ad Tag (Please use the sample Ad Tag 85394) to a Non-DRM content in your Content Library by following the above mentioned method.
  • Click on "Embed" on the right-hand side of the content in which you have linked the SPOTX Ad Tag
  • Copy the Embed Link.









  • Send the Embed URL to SPOTX. (Only send the link after "SRC". Please check the below screenshot. You need to copy the highlighted section)

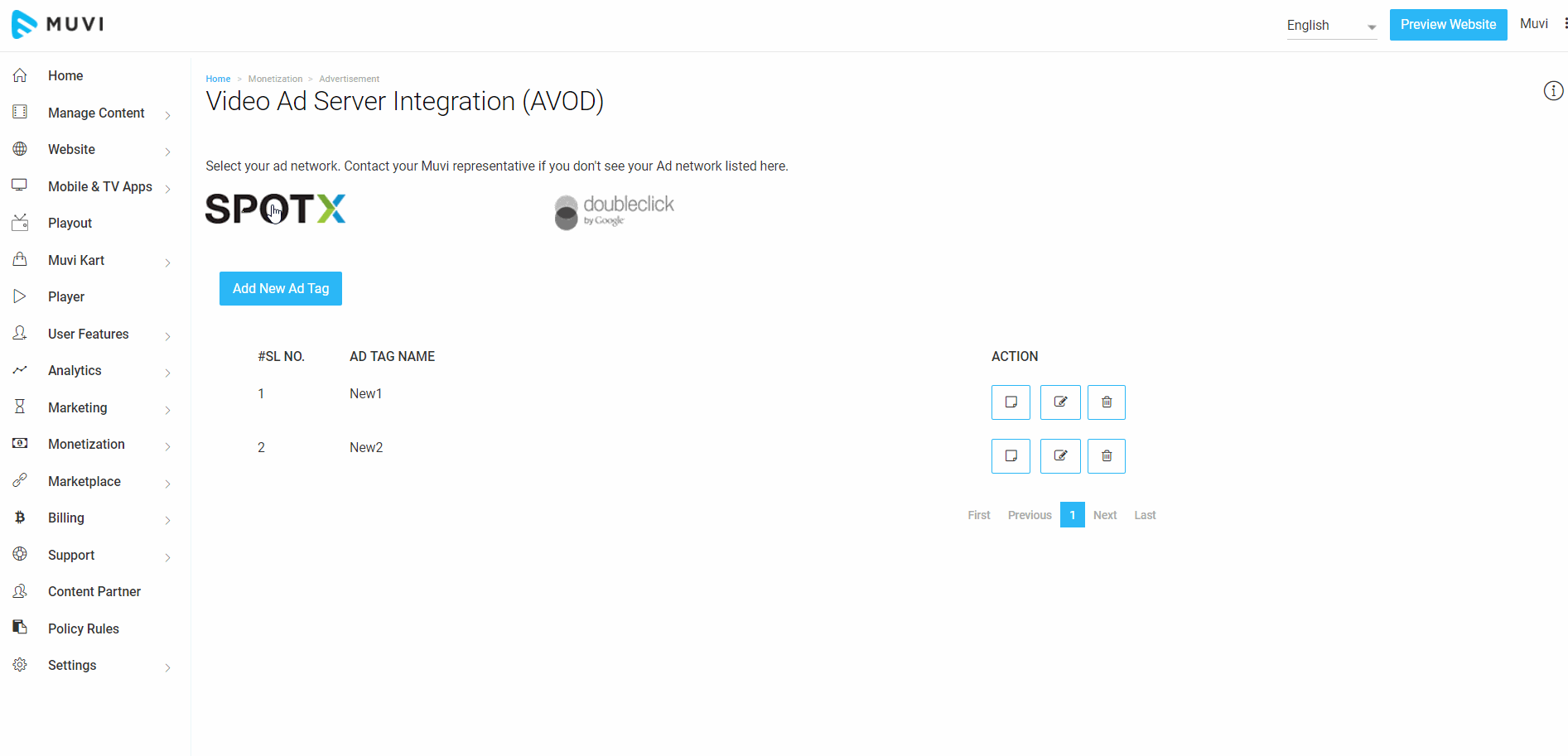

Managing Ad Tags

You can edit or delete the Ad Tags you have added to either SPOTX or DoubleClick.

  • To edit an Ad Tag, click on the Edit Icon. Make necessary changes and click on "Save". The Ad tag will be modified.
  • To delete a specific Ad Tag, click on the Delete Icon. When asked for confirmation, click on "Yes" to delete the Ad Tag





You can configure your video ads and collateral itself from your Ad Servers.



Ads Supported in Player



Player
DFP SPOTX Muvi Ads
Pre-roll Mid-roll Post-roll Pre-roll Mid-roll Post-roll Pre-roll Mid-roll Post-roll
 VOD Yes Yes Yes Yes Yes Yes Yes Yes Yes
Studio Approved DRM VOD Yes Yes Yes Yes Yes Yes Yes Yes Yes
Third-Party* No No No No No No No No No
Live Stream No No No No No No No No No
Audio No No No No No No No No No
EMBED
VOD Yes Yes No Yes No No Yes Yes Yes
Studio Approved DRM VOD Yes Yes Yes Yes Yes Yes Yes Yes Yes
Third-Party* No No No No No No No No No
Live Stream No No No No No No No No No
Audio No No No No No No No No No



*Note: For any third-party video link, we only support the .m3u8 format.





Ads Supported in Mobile Browsers & TV Apps

We support all kinds of ads for Muvi AdsSPOTX, and DoubleClick ad server in Mobile Apps, TV Apps (Apple TV, Fire TV, Android TV, and Roku TV), and Mobile Browsers for non-DRM content.
